Smart Touch Screen 3D Measuring Software Remote Wireless Full Function Module

Unimetro Precision Machinery Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Smart Touch Screen 3D Measuring Software Remote Wireless Full Function Module

Brand Name : External Array

Model Number : Xmeas

Place of Origin : USA

MOQ : 1

Payment Terms : T/T

Supply Ability : 10 per month

Delivery Time : 10 work days

Packaging Details : Paper box

Price : Discussible

Operation terminal : Touch screen tablet

Connection : Cable or wireless

Input : Software keyboard included

Probes management : Available

Efficiency : Increase about 30%

Contact Now



Touch Screen 3D Measurement Software Remote Wireless Full Function Module



Introduction



The touch screen software Xmeas is based on the the RationalDMIS, which is developed for the portable touch screen interface. Users do not need to install any new software, only need the RationalDMIS dongle to activate.



The Xmeas touch screen coordinates measuring machine software is optimized for the touch screen operation, users can only use the touch screen to complete all operation.



The Xmeas software simplify the complicated measuring operation, combining the most common function of the measuring process, users can achieve fast and automatic measuring in the Xmeas windows.



Features



Double screen display, data sharing, increase the working efficiency.

The main screen of RationalDMIS and the Xmeas interface are displaying different interface, the data can be shared. Increase about t 30% working efficiency during the measuring process.



Complete and practical function



In the Xmeas users can achieve the function as: machine homing, touch proba AB angle switching/auto checking, coordinates system fast creating/switching, element measuring, constructing, tolerance evaluation, unit switching, report output, automatic printing, reduce the time of the users running between the machine and PC, increase the measuring efficiency.



Easy operation



Full touch screen operation, support soft keyboard typing. The Xmeas remote operation software has simple and intelligent interface, auto detecting the measuring element, automatically calculate the tolerance/construction. It is with simple operation, users only need about one hour training to manage the operation with the Xmeas.



Smart Touch Screen 3D Measuring Software Remote Wireless Full Function Module



Coordinates measuring machine: users can choose wireless or wiring touch screen, the operator is able to use the Xmeas directly beside the machine, to achieve the common function as element measuring, basic construction or tolerance calculating etc.



RationalDMIS PC: operator can achieve some advanced function, CAD drawing management, CAD input and output, DMIS programming, multiple reports creating.



Element type tool bar



Smart Touch Screen 3D Measuring Software Remote Wireless Full Function Module

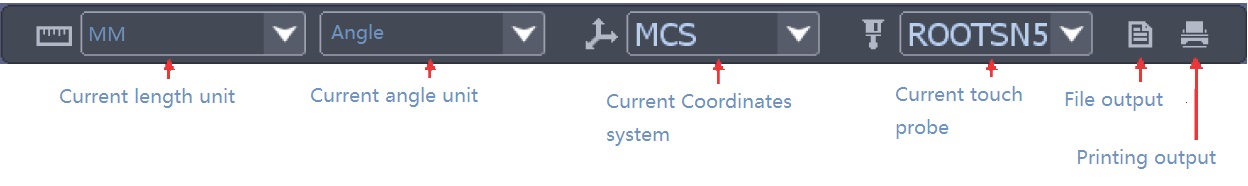

Status bar



Smart Touch Screen 3D Measuring Software Remote Wireless Full Function Module

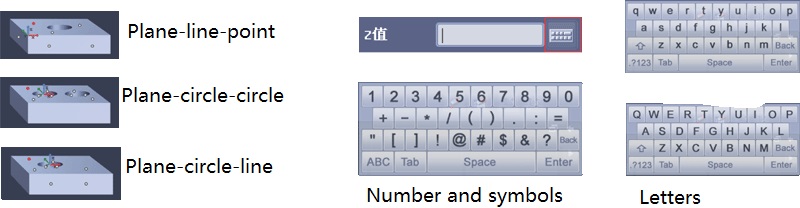

Creating coordinates system                           soft keyboard

Smart Touch Screen 3D Measuring Software Remote Wireless Full Function Module



Probe management



Smart Touch Screen 3D Measuring Software Remote Wireless Full Function Module

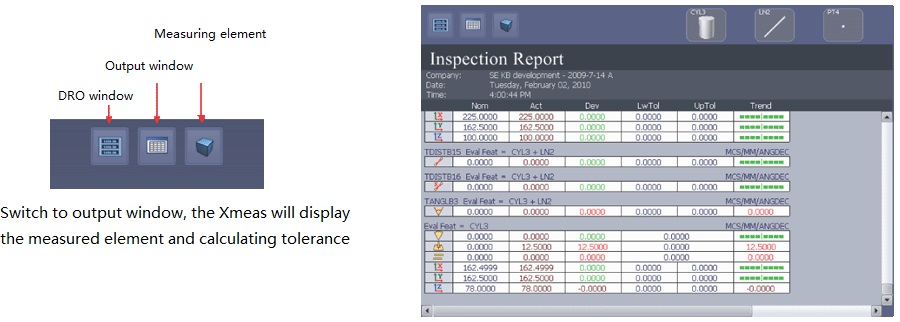

Reports output



Smart Touch Screen 3D Measuring Software Remote Wireless Full Function Module
