C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range

Brand Name : UNIMETRO

Model Number : UNIZOOM125

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 50 per month

Delivery Time : 5 work days

Packaging Details : Paper box

Price : Discussible

Adapter : C type

Max compatible sensor : 2/3"

Working distance : 84+-2mm

Optical Magnification : 0.58-7.5X

Contact Now



Zooming Industrial Lens 12.5X Wide Magnification Range Automation Medical



Continuous Zooming Lens series 12.5X





Parameters

Item

12.5X zooming lens series
Optical Magnification

0.58-7.5X
Working distance

84+-2mm
Optical Magnification

0.58X

6X

1X

1.5X

2X

2.5X

3X

3.5X

4X

4.5X

5X

5.5X

6X

6.5X

7X

7.5X
Depth of field (mm)

2.75

2.67

0.95

0.43

0.27

0.2

0.15

0.12

0.1

0.81

0.73

0.66

0.61

0.56

0.52

0.05
N.A.

0.025

0.025

0.043

0.063

0.074

0.082

0.09

0.1

0.11

0.11

0.07

0.07

0.11

0.11

0.11

0.11
F.No.

12.5

12.5

11.85

11.95

13.65

15.3

16.5

18.4

19.9

20.4

22.45

22.7

26.8

29.4

31.7

33.9
Resolution(um)

13

13

7.8

5.3

4.53

4.09

3.73

3.46

3.36

3.05

3.05

3.05

3.05

3.05

3.05

3.05
TV deformation

0.050%

0.050%

0.002%

0.010%

0.020%

0.003%

0.020%

0.020%

0.018%

0.020%

0.010%

0.010%

0.001%

0.010%

0.005%

0.005%
Vision area (mm)

Diag-onal

18.97

18.33

11

7.33

5.5

4.4

3.67

3.14

2.75

2.44

2.2

2

1.83

1.69

1.57

1.47
Hori-zon

15.17

14.67

8.8

5.87

4.4

3.52

2.93

2.51

2.2

1.96

1.76

1.6

1.47

1.35

1.26

1.17
Verti-cal

11.38

11

6.6

4.4

3.3

2.64

2.2

1.89

1.65

1.47

1.32

1.2

1.1

1.02

0.94

0.88
Max compatible sensor

2/3"
Adapter

C type

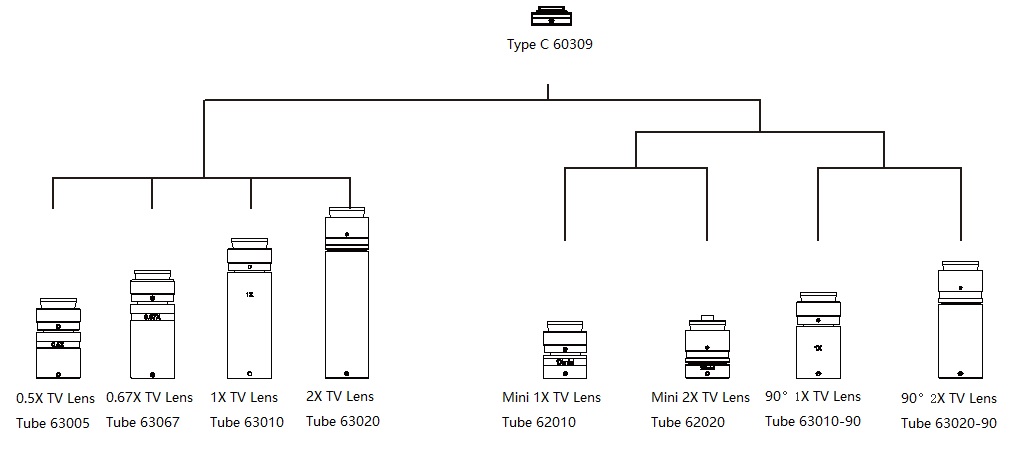

Supporting lens tube



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range

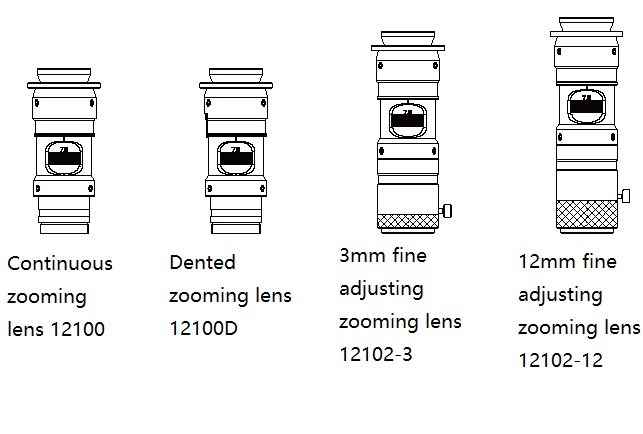

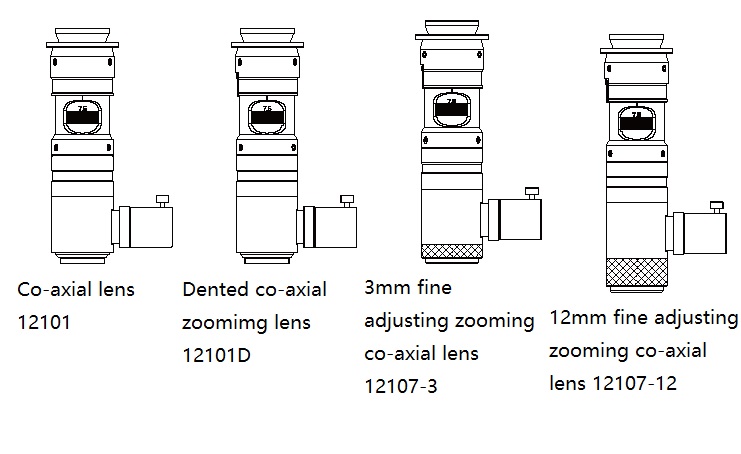

Supporting Manual zoom lens



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range

C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range

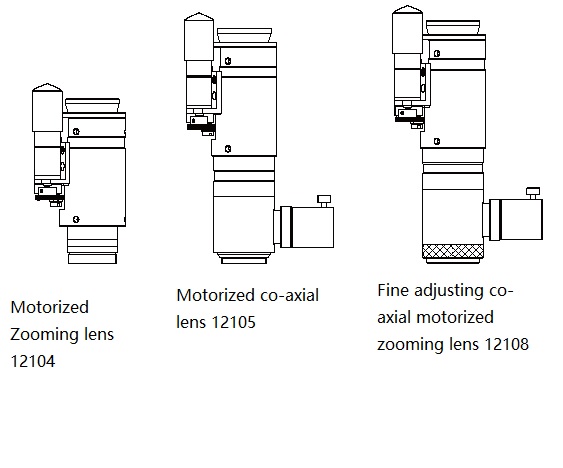

Supporting Motorized zoom lens



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range

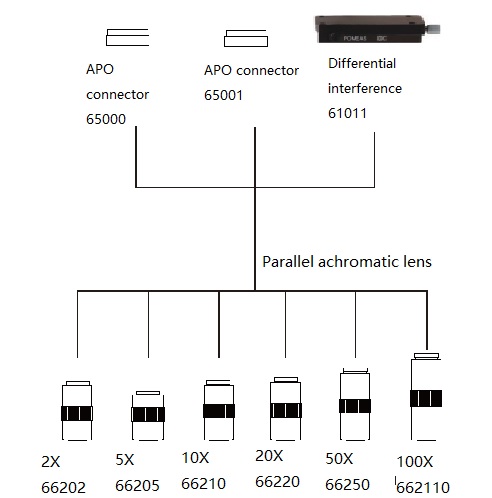

Differential interference components



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range

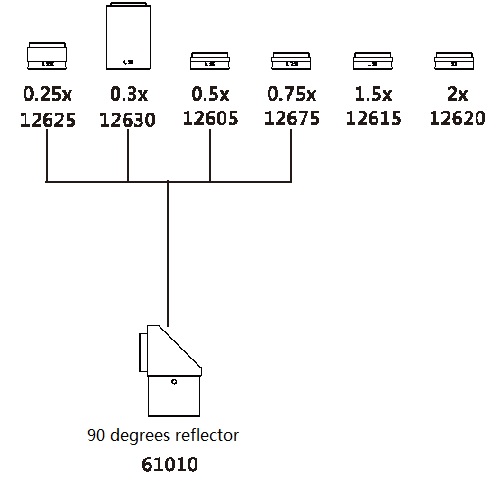

Auxiliary lens



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range

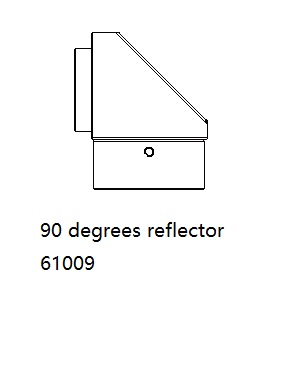

Other lens



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range

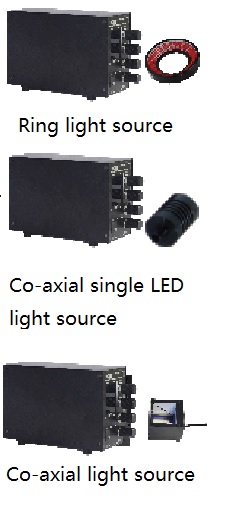

Illumination



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range  C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range





Company Information
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range

Our Client&Agent

C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range
FAQ
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range  Q1: Are you a factory or trading company ?
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range  A1: We are a factory and giving you the quickest reply in 24 hours.
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range  Q2: What's your company mainly in?
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range  A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range  Q3: How to Choose the Appropriate Specification?
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range  A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range  Q4: Do you accept customized service?
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range  A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range  Q5: What is your warranty period?
C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range  A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved  a lot on some breakable parts. You can rest assured of our product quality.
