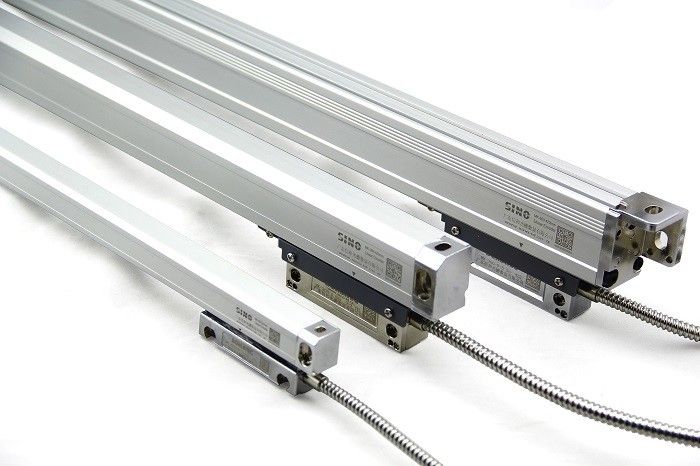

Machine Tools Optical Linear Scale For Measurement Equipment 0.001 MM TTL 422

Machine Tool Optical Linear Scale 0.001 MM TTL 422

Introduction

The ULS series linear scales are with advanced structure design, using vertical bearing design for optical grating linear transducer in the slide carrier, ensure the optical sensor running smoothly and stably on the scale.

The ULS series linear scales are effective for stain, oil resistance, it is the best linear scales users can use on milling machines, grinding, lathe, EDMs, wire cut and measuring systems, etc.

All scales are tested before releasing, ensures the reliability of every single scale for the users.

Detailed Image

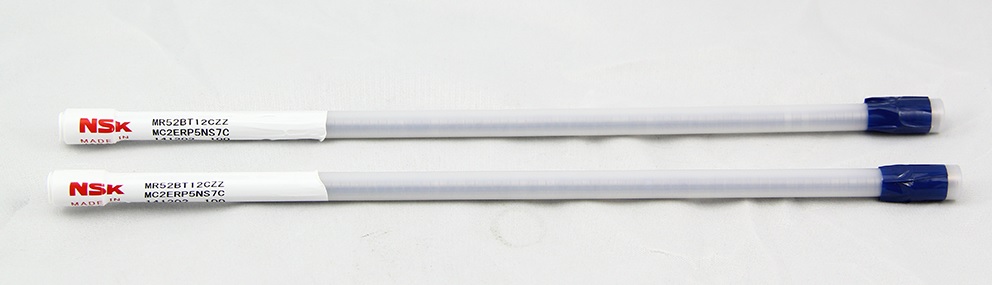

Bearings of the slider

NSK bearings are used in the reader head slider, ensures high accuracy and stability. Lower noise and longer life cycle.

Infrared LED

Using high performance infrared LED, stable lighting performance, the optoelectronic shifting value up to more than 60%, increase the using hours.

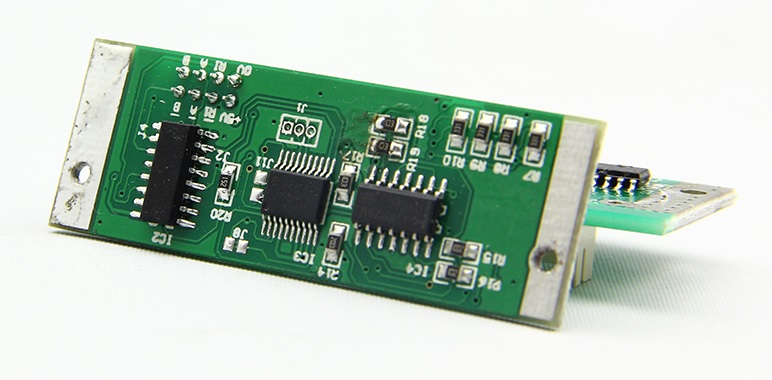

Subdivision IC

Using German IC, strong performance, high accuracy and outstanding transferring effect.

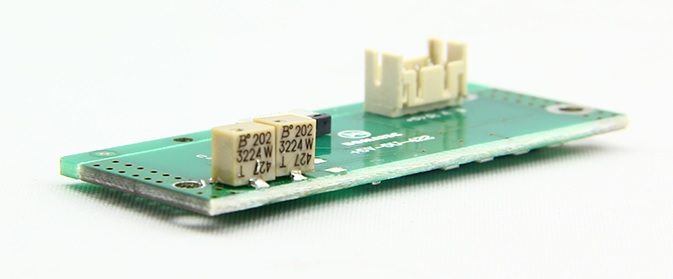

Potentiometer

Using US precise potentiometer, high resolution, wide resistance value range, reliable and with small size.

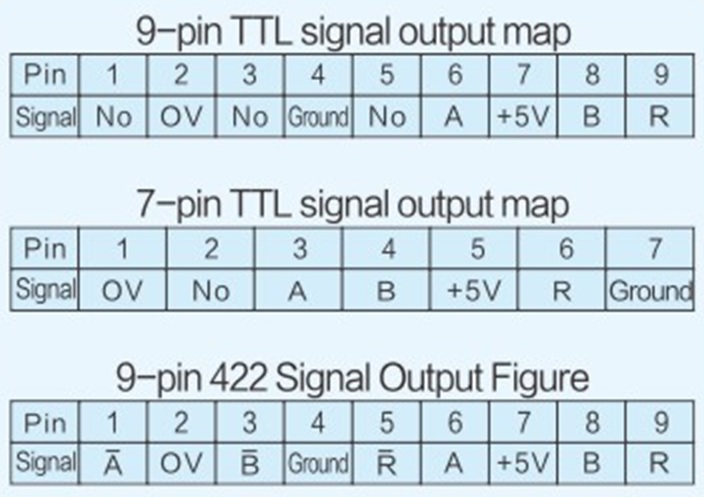

Signal diagram

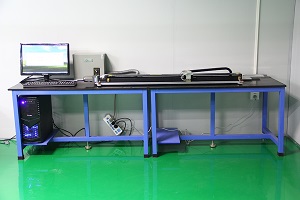

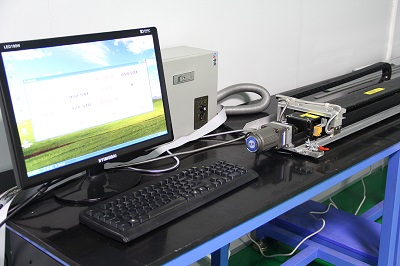

Quality control

Application

The ULS series optical linear scale is widely used in milling machines, grinding, lathe, EDMs, wire cut and measuring systems, etc.

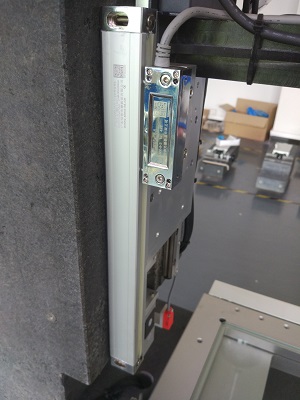

The ULS series used on a vision measurement machine

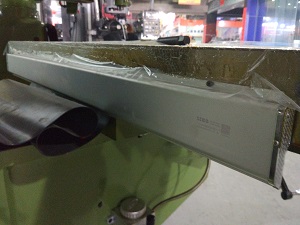

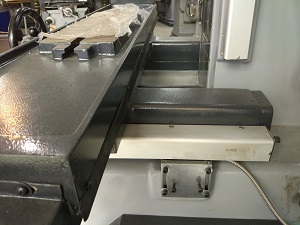

The ULS series used on milling and grinding machine

Company Information

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved  a lot on some breakable parts. You can rest assured of our product quality.
