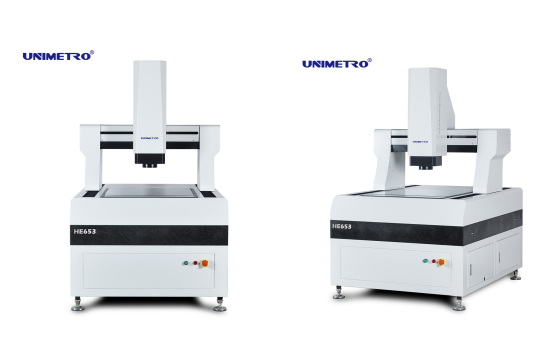

Gantry Type CNC Video Measuring Machine For Large Workpiece Testing
Product Overiew
HE series of high-efficiency gantry type automatic vision measurement system is specially designed for high-precision and large-scale measurement. It adopts fully closed mobile bridge structure to keep the measurement work fixed. It combines high-precision and high-efficiency organically to effectively detect the geometric parameters of various products. At present, it is mainly used in PCB circuit board, copper clad laminate, flat glass, liquid crystal module, knife mould, insulating material, precision sheet metal and other.
Parameters
| Model | HE 652 | HE862 | HE1080 | HE1210 | HE1512 | HE1812 |
X,Y Travel(mm) | 500*600 | 600*800 | 800*1000 | 1000*1200 | 1200*1500 | 1200*1800 | Z-axis Travel(mm) | 200(can be raised according to the requirements of customers) |
Load Capacity | approx. 35 kg |
| Dimension (mm) | 1700*1180*1750 | 1700*1280*1750 | 1900*1480*1750 | 2100*1680*1750 | 2500*1880*1750 | 2700*1880*1750 |
| Weight(kg) | 1500 | 1800 | 2900 | 3200 | 4400 | 4800 |
Resolution | 0.5μm(0.1um for option) |
Camera | 2M HD GIGA digital camera |
Zoom Lens | professional auto zoom lens Zoom lens magnification: 1~10X |
Video Magnification | 18~195X (According to the different models of the selected camera, its magnification will change; the actual magnification is subject to the measured data) |
FOV | 8.1~1.3mm (According to the different matching schemes of camera and lens, the field of view will change accordingly, and the actual field of view is subject to the measured data) |
Accuracy* | ≤ (3+L/200)μm |
Illumination | Programmable 5-ring 8 sections LED surface illumination (40 sections ring light,Co-axial light,movable multi color ring light for option) |
Features
◆ High rigid structure design:
1) The whole closed frame moving bridge structure is adopted, the measuring workpiece is fixed, the bearing capacity is large, and the motion performance is good.
2) Introduce finite element analysis technology into mechanical design to ensure high rigidity and high precision mechanical structure.
3) Grade 000 granite base, high strength, corrosion resistance and good stability.
4) Aluminum oxide surface treatment worktable, fast and flexible action control, durable and beautiful.
◆ High precision configuration:
1) RENISHAW open grating ruler, resolution 0.5um, high precision and good stability.
2) Precision linear guide rail, ball screw of grinder and AC servo motor ensure the stability of positioning accuracy of machine system.
3) 2M pixel high-definition color Giga digital camera meets the requirements of clear observation and stable measurement.
4) 6.5x high-definition optical lens, accurate automatic zoom, fast pixel calibration.
5) Programmable 5-ring 8-zone LED surface light source, transmission parallel LED contour light source system, intelligent 256 level brightness adjustment.
6) Full axis CNC control, AC full closed loop servo motor drive.
◆Optional multi-sensor for 3D measurement:
HE series large gantry type vision measuring instrument can be equipped with a variety of 3d sensors for comprehensive 2D / 3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. It also supports RENSHAW full series of probe bracket, so that users can complete the automatic transformation of full-scale measurement on one device, greatly improving productivity.
Company Information
Our Client&Agent
| FAQ |
![OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing]() Q1: Are you a factory or trading company ? |
![OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing]() A1: We are a factory and giving you the quickest reply in 24 hours. |
![OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing]() Q2: What's your company mainly in? |
![OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing]() A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc. |
![OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing]() Q3: How to Choose the Appropriate Specification? |
![OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing]() A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications. |
![OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing]() Q4: Do you accept customized service? |
![OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing]() A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs. |
![OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing]() Q5: What is your warranty period? |
![OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing]() A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved a lot on some breakable parts. You can rest assured of our product quality. |
